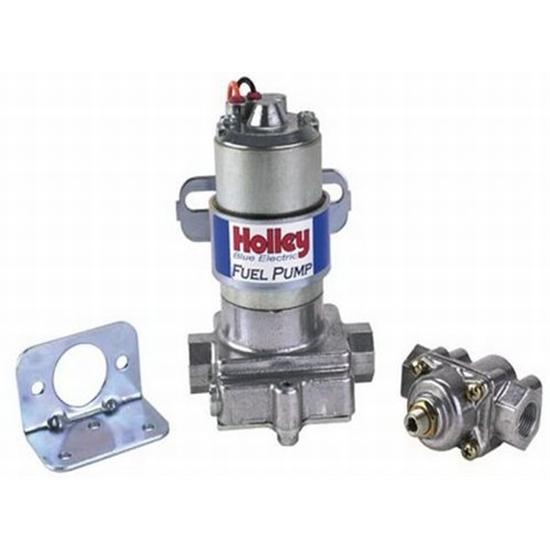

Holley's Blue electric fuel pump with regulator is a max-pressure performance pump for gas applications only. The pressure is preset at 14 psi and the free capacity is 110 gph. It flows 70 gph while maintaining 9 psi. Regulator 427-12803 is supplied. Has a 3/8" NPT inlet/outlet.
Tumble polished billet look
New lower housing casting for enhanced fuel flow
Improved design for street/strip applications
Distinctive "Blue" logo
Flows 110 GPH (free flow)
Flows 88 GPH at 9 PSI
Maximum pressure is 14 PSI
Includes fuel pressure regulator
Motor draws only 3 amps current
7-1/2 amp fuse recommended
Provides constant fuel flow with no pulsation
Has externally accessible pressure relief valve (max 14 PSI)
Rotor/Vane pump design is more tolerant of contaminated fuels
Weighs only 3 lbs.
Includes mounting bracket
Repair kits are readily available
NOT compativle with alcohol or methanol fuels
Use of a safety shut-off switch recommended
Not designed or recommended for use with fuel injection systems
3/8 NP intlet/outlet
